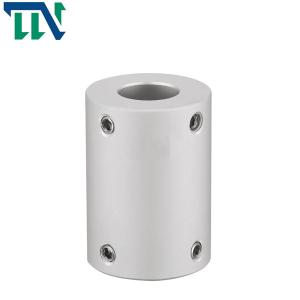

Servo Motor Solid Shaft Coupling Rigid Clamp Coupling 32X32mm

  • 1
  • 2
  • 3

Brand Name : Tianniu

Model Number : GN 32*32 GN 32*41

Certification : ISO 9001

Place of Origin : China

MOQ : 2 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability : 10000 per month

Delivery Time : 3-5 working days

Packaging Details : Cartons by sea shipping by airplane

Name : Rigid shaft coupling

Model : GN series

Material : Aluminium Steel

Bore size : 32mm

Warranty : 12 months

Elastomer materia : PA66

Surface Treatment : Anodic oxidation treatment

Weight : 60-70g

Contact Now

Rigid GN 32X32 41 Rigid Shaft Coupling Aluminum Alloy Metric For Servo Motor

Products Parameters

Servo Motor Solid Shaft Coupling Rigid Clamp Coupling 32X32mm

model parameter common bore diameter d1,d2 ΦD L F M tightening screw torque
(N.M)
GN-16X16 3,4,5,6,6.35,7,8 16 16 5 M3 0.7
GN-16x24 4,5,6,6.35,7,8 16 24 6 M3 0.7
GN-20x20 4,5,6,6.35,7,8,9,9.525,10 20 20 5 M3 0.7
GN-20x30 4,5,6,6.35,7,8,9,9.525,10 20 30 7 M4 1.7
GN-25x25 5,6,6.35,7,8,9,9.525,10,12 25 25 8 M4 1.7
GN-25x36 5,6,6.35,7,8,9,9.525,10,12 25 36 9 M4 1.7
GN-32x32 6,6.35,7,8,9,9.525,10,12,12.7,14,15,16 32 32 9 M5 4
GN-32x41 6,6.35,7,8,9,9.525,10,12,12.7,14,15,16 32 41 10 M5 4
GN-40x44 8,9,9.525,10,11,12,12.7,14,15,16,17,18,19,20 40 44 10.5 M5 4
GN-50x55 10,11,12,12.7,14,15,16,17,18,19,20,22,24,25 50 55 13 M6 7
GN-50x66 10,11,12,12.7,14,15,16,17,18,19,20,22,24,25 50 66 15 M6 7
GN-63x71 12,14,15,16,17,18,19,20,22,24,25,28,30,32 63 71 16 M6 7


odel parameter Rated torque
(N.M)*		 allowable eccentricity
(mm)*		 allowable deflection angle
(°)*		 allowable axial deviation
(mm)*		 maximum speed
rpm		 moment of inertia
(Kg.M2)		 Material of shaft sleeve surface treatment weight
(g)
GN-16x16 5 - - - 23000 4.39x10-7 High strength aluminum alloy Anodizing treatment 6
GN-16x24 5 - - - 23000 4.39x10-7 10
GN-20x20 10 - - - 18000 1.25x10-6 14
GN-20x30 10 - - - 18000 1.25x10-6 19
GN-25x25 12 - - - 14000 3.8x10-7 25
GN-25x36 12 - . - 14000 3.8xl0-7 38
GN-32x32 15 - - - 11000 1.15x10-7 60
GN-32x41 15 - - - 11000 1.15xl0-7 70
GN-40x44 19 - - - 4000 1.45x10-7 118
GN-50x55 45 - - 4000 2x10-7 235
GN-50x66 45 - - - 4000 2x10-7 300
GN-63x71 115 - - - 3800 1.8x10-7 400
