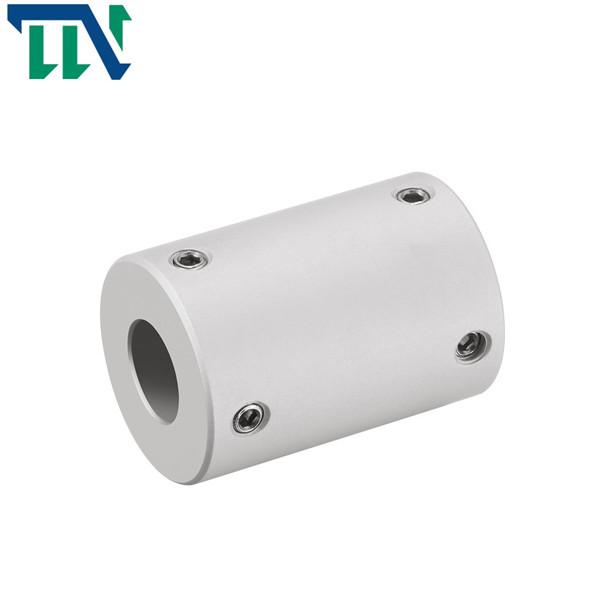

Solid Shaft Coupling For Axial Load Set Screw Rigid Shaft Coupler 20X20mm

  • 1
  • 2
  • 3

Brand Name : Tianniu

Model Number : GN20*20 GN 20*30

Certification : ISO 9001

Place of Origin : China

MOQ : 2 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability : 10000 per month

Delivery Time : 3-5 working days

Packaging Details : Cartons by sea shipping by airplane

Name : Rigid shaft coupling

Model : GN series

Material : Aluminium Steel

Bore size : 20mm

Warranty : 12 months

Elastomer materia : PA66

Surface Treatment : Anodic oxidation treatment

Weight : 15-20g

Contact Now

Rigid GN 20X20 30 Rigif Shaft Coupling Setcrew Aluminum Alloy For CNC

Products Features

Rigid coupling is a kind of torsional rigid coupling, which has no rotation clearance even when bearing load. Even when there is a load caused by deviation, the rigid coupling still transmits torque rigidly.

The bolts on the flange of the rigid coupling can be all bolts for reaming holes, or half of them are bolts for reaming holes, and the other half are ordinary bolts, according to the magnitude of the transmission torque.

Advantages:

1. Light weight, ultra-low inertia and high sensitivity 2. Maintenance free, super oil and corrosion resistance 3. Aluminum alloy and stainless steel materials 4. Fastening bolt type, clamping type and separation type are provided 5. Product models with different pore sizes at both ends are also available in stock

Changzhou Tianniu Factory is a professional manufacturer of plum couplings, rigid couplings, universal couplings, cross slide couplings, winding couplings, bellows couplings, double membrane couplings and other products. The processing company has a complete and scientific quality management system.

Products Parameters

Solid Shaft Coupling For Axial Load Set Screw Rigid Shaft Coupler 20X20mm

model parameter common bore diameter d1,d2 ΦD L F M tightening screw torque
(N.M)
GN-16X16 3,4,5,6,6.35,7,8 16 16 5 M3 0.7
GN-16x24 4,5,6,6.35,7,8 16 24 6 M3 0.7
GN-20x20 4,5,6,6.35,7,8,9,9.525,10 20 20 5 M3 0.7
GN-20x30 4,5,6,6.35,7,8,9,9.525,10 20 30 7 M4 1.7
GN-25x25 5,6,6.35,7,8,9,9.525,10,12 25 25 8 M4 1.7
GN-25x36 5,6,6.35,7,8,9,9.525,10,12 25 36 9 M4 1.7
GN-32x32 6,6.35,7,8,9,9.525,10,12,12.7,14,15,16 32 32 9 M5 4
GN-32x41 6,6.35,7,8,9,9.525,10,12,12.7,14,15,16 32 41 10 M5 4
GN-40x44 8,9,9.525,10,11,12,12.7,14,15,16,17,18,19,20 40 44 10.5 M5 4
GN-50x55 10,11,12,12.7,14,15,16,17,18,19,20,22,24,25 50 55 13 M6 7
GN-50x66 10,11,12,12.7,14,15,16,17,18,19,20,22,24,25 50 66 15 M6 7
GN-63x71 12,14,15,16,17,18,19,20,22,24,25,28,30,32 63 71 16 M6 7


odel parameter Rated torque
(N.M)*		 allowable eccentricity
(mm)*		 allowable deflection angle
(°)*		 allowable axial deviation
(mm)*		 maximum speed
rpm		 moment of inertia
(Kg.M2)		 Material of shaft sleeve surface treatment weight
(g)
GN-16x16 5 - - - 23000 4.39x10-7 High strength aluminum alloy Anodizing treatment 6
GN-16x24 5 - - - 23000 4.39x10-7 10
GN-20x20 10 - - - 18000 1.25x10-6 14
GN-20x30 10 - - - 18000 1.25x10-6 19
GN-25x25 12 - - - 14000 3.8x10-7 25
GN-25x36 12 - . - 14000 3.8xl0-7 38
GN-32x32 15 - - - 11000 1.15x10-7 60
GN-32x41 15 - - - 11000 1.15xl0-7 70
GN-40x44 19 - - - 4000 1.45x10-7 118
GN-50x55 45 - - 4000 2x10-7 235
GN-50x66 45 - - - 4000 2x10-7 300
GN-63x71 115 - - - 3800 1.8x10-7 400

Product Tags:

set screw rigid coupling



set screw rigid shaft coupler



rigid shaft coupler 20X20mm


China Solid Shaft Coupling For Axial Load Set Screw Rigid Shaft Coupler 20X20mm factory

Solid Shaft Coupling For Axial Load Set Screw Rigid Shaft Coupler 20X20mm Images
