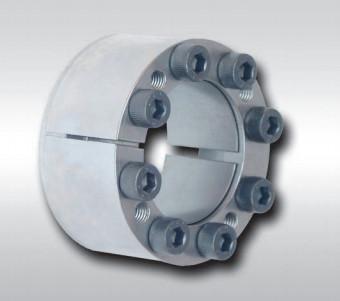

RLK350 Lock Nut Bearing Standard Shaft Locking Device
Products Features
With the expansion of the scope of application, all kinds of complex connection forms in the machinery can be replaced by special expansion and tight coupling sleeves. Simplify the transmission structure or become an integral part of a mechanical component, such as a backlash-free diaphragm coupling
Locking assembly is an advanced basic component widely used in mechanical connection under heavy load in the world. In the connection of wheel and shaft, it is a keyless connection device that realizes load transmission by tightening high-strength bolts to make the pressure and friction produced between the containment surfaces
Locking assembly is widely used in:
Mining machinery, metallurgical machinery, packaging machinery, tobacco machinery, textile machinery, printing machinery, forging machinery, engineering machinery, all kinds of machine tools and interchangeable machinery. For example: belt pulley, sprocket, gear, propeller, large and small fan, blower or direct connection with shaft and hub and other transmission connections
| Model |
RLK300 Cone Clamping Elements |
| Pressure on Shaft (N/mm2) |
120 |
| Pressure on Hub (N/mm2) |
92-108 |
| Rated Load (kN.m) |
Force |
1.4-273 |
| Torque |
0.0073-27.393 |
| Inner Race Size (mm) |
10-200 |
| Outer Race Size (mm) |
13-224 |
| Thickness (mm) |
4.5-38 |
| Weight (Kg) |
0.002-2.32 |
Products Parameters
| Type |
d |
D |
B |
| |
[mm] |
[mm] |
[mm] |
| RLK 350-5 x 16 |
5 |
16 |
13,5 |
| RLK 350-6 x 16 |
6 |
16 |
13,5 |
| RLK 350-6,35 x 16 |
6,35 |
16 |
13,5 |
| RLK 350-7 x 17 |
7 |
17 |
13,5 |
| RLK 350-8 x 18 |
8 |
18 |
13,5 |
| RLK 350-9 x 20 |
9 |
20 |
15,5 |
| RLK 350-9,53 x 20 |
9,53 |
20 |
15,5 |
| RLK 350-10 x 20 |
10 |
20 |
15,5 |
| RLK 350-11 x 22 |
11 |
22 |
15,5 |
| RLK 350-12 x 22 |
12 |
22 |
15,5 |
| RLK 350-14 x 26 |
14 |
26 |
20 |
| RLK 350-15 x 28 |
15 |
28 |
20 |
| RLK 350-16 x 32 |
16 |
32 |
21 |
| RLK 350-17 x 35 |
17 |
35 |
25 |
| RLK 350-18 x 35 |
18 |
35 |
25 |
| RLK 350-19 x 35 |
19 |
35 |
25 |
| RLK 350-20 x 38 |
20 |
38 |
26 |
| RLK 350-22 x 40 |
22 |
40 |
26 |
| RLK 350-24 x 47 |
24 |
47 |
32 |
| RLK 350-25 x 47 |
25 |
47 |
32 |
| RLK 350-28 x 50 |
28 |
50 |
32 |
| RLK 350-30 x 55 |
30 |
55 |
32 |
| RLK 350-32 x 55 |
32 |
55 |
32 |
| RLK 350-35 x 60 |
35 |
60 |
37 |
| RLK 350-38 x 65 |
38 |
65 |
37 |
| RLK 350-40 x 65 |
40 |
65 |
37 |
| RLK 350-45 x 75 |
45 |
75 |
44 |
| RLK 350-50 x 80 |
50 |
80 |
44 |
